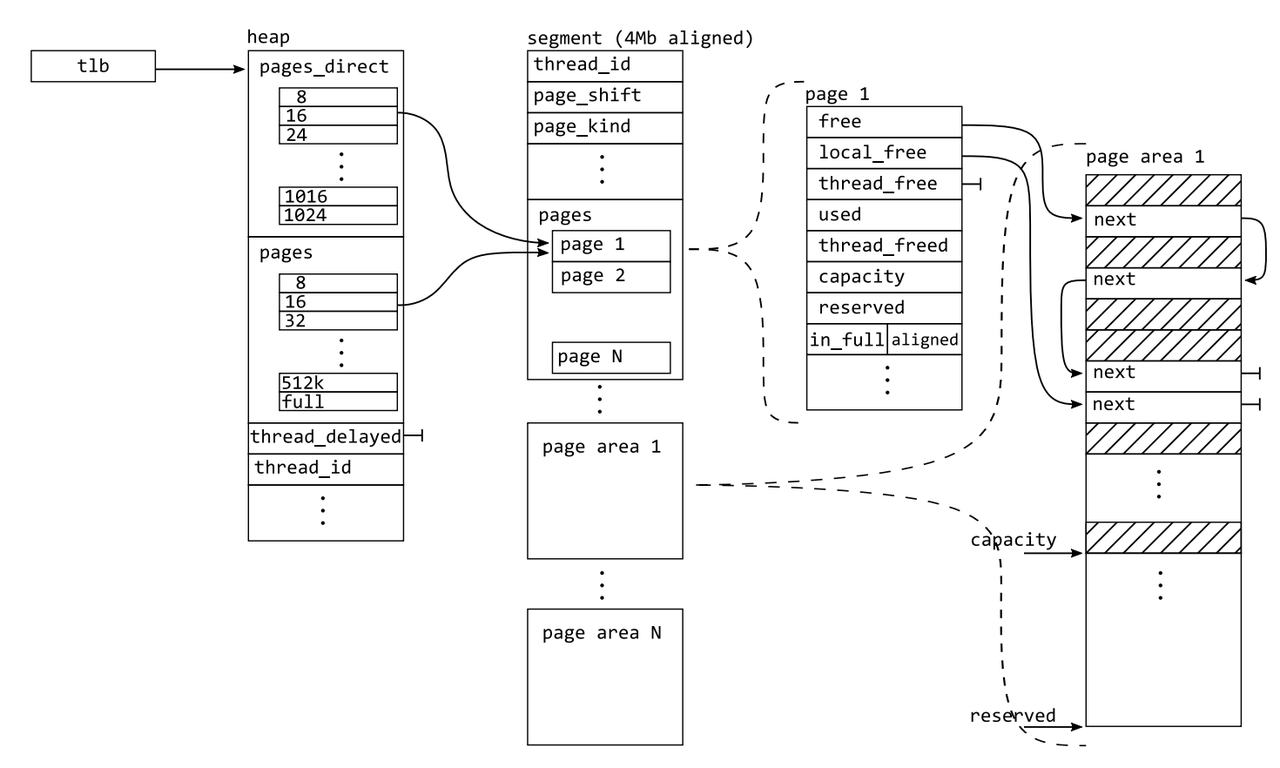

// A heap owns a set of pages.
struct mi_heap_s {
  // 所属 tld
  mi_tld_t*             tld;
  // 一个加速 malloc 的优化，数组元素指向一个 page，
  // 该 page 可能包含有 index 大小的 free blocks
  mi_page_t*            pages_free_direct[MI_PAGES_DIRECT];  // optimize: array where every entry points a page with possibly free blocks in the corresponding queue for that size.
  // page 队列，每个 page 中 block 的 size 相同
  // heap 并不直接对 segment 进行管理， page 可能属于不同的 segment
  // pages 不一定都有可用的 block
  // pages 最后一个位置是没有 free block 的 pagas 链表
  mi_page_queue_t       pages[MI_BIN_FULL + 1];              // queue of pages for each size class (or "bin")
  // 其他线程 freed 的 block 链表, 用于把 page 从 full-list 中移除，
  // 每个 page 仅会有一个 block 添加到 thread_delayed_free
  // page 还有个 xthread_free，表示其他线程 freed 的 block，但仅包含该 page 的
  _Atomic(mi_block_t*)  thread_delayed_free;
  mi_threadid_t         thread_id;                           // thread this heap belongs too
  // arena 是一个预先从 os 获取的大块内存，之后的分配实际从 arena 中分配，
  // 目前，mimalloc 仅对 huge page 进行 arena 分配
  mi_arena_id_t         arena_id;                            // arena id if the heap belongs to a specific arena (or 0)
  uintptr_t             cookie;                              // random cookie to verify pointers (see `_mi_ptr_cookie`)
  // 对 thread_delayed_free 的 next 指针做编解码，防止 overflow 攻击
  // 编码规则： ((p^k2)<<<k1)+k1
  uintptr_t             keys[2];                             // two random keys used to encode the `thread_delayed_free` list
  mi_random_ctx_t       random;                              // random number context used for secure allocation
  // pages 中 page 个数
  size_t                page_count;                          // total number of pages in the `pages` queues.
  // 最少的全 free 的 pages
  // page 全 free 后进行 retire，如果超过一定时间没有被使用会被回收
  size_t                page_retired_min;                    // smallest retired index (retired pages are fully free, but still in the page queues)
  // 最多的全 free 的 pages
  size_t                page_retired_max;                    // largest retired index into the `pages` array.
  // 线程内的 heap 链表，可以为 thread 新建其他 heap
  mi_heap_t*            next;                                // list of heaps per thread
  // 表示该 heap 的 page 不应该被回收
  bool                  no_reclaim;                          // `true` if this heap should not reclaim abandoned pages
};

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49

// Segments are large allocated memory blocks (8mb on 64 bit) from
// the OS. Inside segments we allocated fixed size _pages_ that
// contain blocks.
typedef struct mi_segment_s {
  // arena memory id
  size_t            memid;              // memory id for arena allocation
  bool              mem_is_pinned;      // `true` if we cannot decommit/reset/protect in this memory (i.e. when allocated using large OS pages)
  bool              mem_is_large;       // in large/huge os pages?
  bool              mem_is_committed;   // `true` if the whole segment is eagerly committed
  size_t            mem_alignment;      // page alignment for huge pages (only used for alignment > MI_ALIGNMENT_MAX)
  size_t            mem_align_offset;   // offset for huge page alignment (only used for alignment > MI_ALIGNMENT_MAX)
  // 是否允许 decommit
  bool              allow_decommit;
  // decommit 的过期时间
  mi_msecs_t        decommit_expire;
  // delay decommit 的块 mask
  // decommit_mask 并不是已经 decommit mask, 而是待 decommit 的 mask
  // delay decommit 的目的是 reuse
  mi_commit_mask_t  decommit_mask;
  // 已经 commit 的块 mask
  mi_commit_mask_t  commit_mask;
  // abandoned 的链表指针，segment 是链表的元素
  // 如果不为空，说明该 segment 被 abondoned
  _Atomic(struct mi_segment_s*) abandoned_next;
  // 下一个 segment
  // from here is zero initialized
  struct mi_segment_s* next;            // the list of freed segments in the cache (must be first field, see `segment.c:mi_segment_init`)
  // abandoned pages 个数
  size_t            abandoned;          // abandoned pages (i.e. the original owning thread stopped) (`abandoned <= used`)
  // 每被访问一次会增加一次计数，超过 3 时，segment 会被 reclaim, 来限制 abandoned list 的长度
  size_t            abandoned_visits;   // count how often this segment is visited in the abandoned list (to force reclaim it it is too long)
  // 当前在用 page 个数
  size_t            used;               // count of pages in use
  uintptr_t         cookie;             // verify addresses in debug mode: `mi_ptr_cookie(segment) == segment->cookie`
  // segments 实际的单元 slice 个数
  size_t            segment_slices;      // for huge segments this may be different from `MI_SLICES_PER_SEGMENT`
  // 用于保存元数据和 guard page 的 slice 个数
  size_t            segment_info_slices; // initial slices we are using segment info and possible guard pages.
  // segment 的分类，huge page 一个 segment 仅有一个 page
  // layout like this to optimize access in `mi_free`
  mi_segment_kind_t kind;
  // 实际的 slice 的个数，不是最小单元 slice 的个数，一个 slice 可以横跨多个单元 slice
  size_t            slice_entries;       // entries in the `slices` array, at most `MI_SLICES_PER_SEGMENT`
  // 所属线程 id
  _Atomic(mi_threadid_t) thread_id;      // unique id of the thread owning this segment
  // slice 单元数组，每个元素都是一个单元 slice，但实际有效的个数是 segment_slices
  // mi_segment_slices_end 函数用来得到最后的slice(page) 的 index
  mi_slice_t        slices[MI_SLICES_PER_SEGMENT+1];  // one more for huge blocks with large alignment
} mi_segment_t;

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44

typedef struct mi_page_s {
  // 当前 page/slcie 所占单元 slice 个数
  // "owned" by the segment
  uint32_t              slice_count;       // slices in this page (0 if not a page)
  // 当前 slice 距 page 第一个 slice 的 offset, 0 表示 page 的第一个 slice
  uint32_t              slice_offset;      // distance from the actual page data slice (0 if a page)
  // 是否 page 内存被 reset 了
  uint8_t               is_reset : 1;      // `true` if the page memory was reset
  // 是否 page 内存被 decommit 了
  uint8_t               is_committed : 1;  // `true` if the page virtual memory is committed
  // 是否被 0 初始化
  uint8_t               is_zero_init : 1;  // `true` if the page was zero initialized
  // page 总的 committed block 个数
  // layout like this to optimize access in `mi_malloc` and `mi_free`
  uint16_t              capacity;          // number of blocks committed, must be the first field, see `segment.c:page_clear`
  // page 总的 block 个数, 包括已经被 decommitted 的 blocks
  uint16_t              reserved;          // number of blocks reserved in memory
  // 一些 flag 状态, 包括是否是 full，对齐
  mi_page_flags_t       flags;             // `in_full` and `has_aligned` flags (8 bits)
  uint8_t               is_zero : 1;       // `true` if the blocks in the free list are zero initialized
  // page retire 计数，为 0 时，表示需要被 free，目的是避免被 free 后，又需要立马分配
  uint8_t               retire_expire : 7; // expiration count for retired blocks
  // free-blocks 链表
  mi_block_t*           free;              // list of available free blocks (`malloc` allocates from this list)
  // 在用 block 个数, xthread_free 中的 block 依然算在 used，local_free 和 free 的不算做 used
  uint32_t              used;              // number of blocks in use (including blocks in `local_free` and `thread_free`)
  // page block 大小，每个 page 的 block 都是相同的
  // 如果为 0，表示 page 是 huge blocks
  uint32_t              xblock_size;       // size available in each block (always `>0`)
  // 本线程释放的 blocks 链表
  mi_block_t*           local_free;        // list of deferred free blocks by this thread (migrates to `free`)
  ...
  // 其他线程使用的 blocks 链表
  _Atomic(mi_thread_free_t) xthread_free;  // list of deferred free blocks freed by other threads
  // page 所在 heap
  _Atomic(uintptr_t)        xheap;
  // pages 链表指针, 可能指向同 thread 的其他 segment page
  struct mi_page_s*     next;              // next page owned by this thread with the same `block_size`
  struct mi_page_s*     prev;              // previous page owned by this thread with the same `block_size`
  // 64-bit 9 words, 32-bit 12 words, (+2 for secure)
  #if MI_INTPTR_SIZE==8
  uintptr_t padding[1];
  #endif
} mi_page_t;

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43

// Thread local data
struct mi_tld_s {
  // free 心跳计数，用于判断是否要执行注册的 defer-free 函数
  // 详见 deferred-free 模块
  unsigned long long  heartbeat;     // monotonic heartbeat count
  // 防止 defer free 重入执行
  bool                recurse;       // true if deferred was called; used to prevent infinite recursion.
  // backing heap，不能删除，默认指向 default heap
  // 线程的其他堆被删除时，被释放的 segment 被 backing heap 接管
  mi_heap_t*          heap_backing;  // backing heap of this thread (cannot be deleted)
  // 当前线程堆链表头节点
  mi_heap_t*          heaps;         // list of heaps in this thread (so we can abandon all when the thread terminates)
  // segments 的 tld 元数据
  mi_segments_tld_t   segments;      // segment tld
  // os tld
  mi_os_tld_t         os;            // os tld
  // 当前线程的统计信息
  mi_stats_t          stats;         // statistics
};

// 线程 default heap 和 tld 可以一次完成分配
typedef struct mi_thread_data_s {
  // thread 主 Heap
  mi_heap_t  heap;  // must come first due to cast in `_mi_heap_done`
  // 线程元数据
  mi_tld_t   tld;
} mi_thread_data_t;

// Segments thread local data
typedef struct mi_segments_tld_s {
  // slice bin 队列, 包含最多 slice_count 个 slice
  mi_span_queue_t     spans[MI_SEGMENT_BIN_MAX+1];  // free slice spans inside segments
  // segments 当前总数
  size_t              count;        // current number of segments;
  // segments 峰值总数
  size_t              peak_count;   // peak number of segments
  // segments 当前总大小
  size_t              current_size; // current size of all segments
  // segments 峰值总大小
  size_t              peak_size;    // peak size of all segments
  mi_stats_t*         stats;        // points to tld stats
  mi_os_tld_t*        os;           // points to os stats
} mi_segments_tld_t;

1

static _Atomic(uintptr_t) mi_segment_map[MI_SEGMENT_MAP_WSIZE + 1];  // 2KiB per TB with 64MiB segments

1
2
3
4
5

// small size 最多允许 128 words，一个 word 是系统能一次处理的最大字节数
// https://en.wikipedia.org/wiki/Word_(computer_architecture)
#define MI_SMALL_WSIZE_MAX  (128)
// small size 的最大大小
#define MI_SMALL_SIZE_MAX   (MI_SMALL_WSIZE_MAX*sizeof(void*))

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35

static inline mi_decl_restrict void* mi_heap_malloc_small_zero(mi_heap_t* heap, size_t size, bool zero) mi_attr_noexcept {
  // 从 heap pages_free_direct 中获取有 size free block的 page, 如果没有合适的 page，返回值指向一个空 page
  // pages_free_direct 是用于加快查找有 free block 的 page
  mi_page_t* page = _mi_heap_get_free_small_page(heap, size + MI_PADDING_SIZE);
  // 从 page 中分配, 如果 page 没有合适的 block，从 heap 中进行generic分配
  void* p = _mi_page_malloc(heap, page, size + MI_PADDING_SIZE, zero);
}

// 从 heap pages_free_direct 中获取有 size free block的 page
static inline mi_page_t* _mi_heap_get_free_small_page(mi_heap_t* heap, size_t size) {
  mi_assert_internal(size <= (MI_SMALL_SIZE_MAX + MI_PADDING_SIZE));
  // 计算 small size 换成 word 后的下标
  const size_t idx = _mi_wsize_from_size(size);
  mi_assert_internal(idx < MI_PAGES_DIRECT);
  // 取回有 free blocks 的 page，有可能为空
  return heap->pages_free_direct[idx];
}

// Fast allocation in a page: just pop from the free list.
// Fall back to generic allocation only if the list is empty.
extern inline void* _mi_page_malloc(mi_heap_t* heap, mi_page_t* page, size_t size, bool zero) mi_attr_noexcept {
  mi_block_t* const block = page->free;
  // slow path
  if mi_unlikely(block == NULL) {
    return _mi_malloc_generic(heap, size, zero, 0);
  }
  // fast path
  // pop from the free list
  // 增加 block 使用计数，page 中的 block 大小相同
  page->used++;
  // 从链表移除
  page->free = mi_block_next(page, block);
  ...
  return block;
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39

// Generic allocation routine if the fast path (`alloc.c:mi_page_malloc`) does not succeed.
// Note: in debug mode the size includes MI_PADDING_SIZE and might have overflowed.
// The `huge_alignment` is normally 0 but is set to a multiple of MI_SEGMENT_SIZE for
// very large requested alignments in which case we use a huge segment.
void* _mi_malloc_generic(mi_heap_t* heap, size_t size, bool zero, size_t huge_alignment) mi_attr_noexcept
{
    // 执行使用方注册的 deferred free
    // call potential deferred free routines
    _mi_deferred_free(heap, false);

    // free 其他线程 delay free 的 blocks, 会填充到 free-list
    // free delayed frees from other threads (but skip contended ones)
    _mi_heap_delayed_free_partial(heap);

    // find (or allocate) a page of the right size
    mi_page_t* page = mi_find_page(heap, size, huge_alignment);
    if mi_unlikely(page == NULL) { // first time out of memory, try to collect and retry the allocation once more
      // 如果没有合适的 page，进行一次 collect, 会从全局的 abandoned list 中回收 segment
      mi_heap_collect(heap, true /* force */);
      page = mi_find_page(heap, size, huge_alignment);
    }
    // 如果没有合适的 page，返回
    if mi_unlikely(page == NULL) { // out of memory
      return NULL;
    }
    // 因为都是在本线程 heap 中 page，所以 page 已经是有效的
    // and try again, this time succeeding! (i.e. this should never recurse through _mi_page_malloc)
    if mi_unlikely(zero && page->xblock_size == 0) {
      // note: we cannot call _mi_page_malloc with zeroing for huge blocks; we zero it afterwards in that case.
      void* p = _mi_page_malloc(heap, page, size, false);
      mi_assert_internal(p != NULL);
      // huge block 需要再分配后进行置 0
      _mi_memzero_aligned(p, mi_page_usable_block_size(page));
      return p;
    }
    else {
      return _mi_page_malloc(heap, page, size, zero);
    }
}

1
2
3
4

//
static inline mi_page_queue_t* mi_page_queue(const mi_heap_t* heap, size_t size) {
  return &((mi_heap_t*)heap)->pages[_mi_bin(size)];
}

1
2

typedef void (mi_cdecl mi_deferred_free_fun)(bool force, unsigned long long heartbeat, void* arg);
mi_decl_export void mi_register_deferred_free(mi_deferred_free_fun* deferred_free, void* arg) mi_attr_noexcept;

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15

// mi_register_deferred_free 函数用于注册 defer free 函数
static mi_deferred_free_fun* volatile deferred_free = NULL;
// defer free 的参数
static _Atomic(void*) deferred_arg; // = NULL

void _mi_deferred_free(mi_heap_t* heap, bool force) {
  heap->tld->heartbeat++;
  if (deferred_free != NULL && !heap->tld->recurse) {
    // 避免重入
    heap->tld->recurse = true;
    // 执行 defer free 函数
    deferred_free(force, heap->tld->heartbeat, mi_atomic_load_ptr_relaxed(void,&deferred_arg));
    heap->tld->recurse = false;
  }
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11

// Thread free list.
// We use the bottom 2 bits of the pointer for mi_delayed_t flags
typedef uintptr_t mi_thread_free_t;

// The delayed flags are used for efficient multi-threaded free-ing
typedef enum mi_delayed_e {
  MI_USE_DELAYED_FREE   = 0, // push on the owning heap thread delayed list
  MI_DELAYED_FREEING    = 1, // temporary: another thread is accessing the owning heap
  MI_NO_DELAYED_FREE    = 2, // optimize: push on page local thread free queue if another block is already in the heap thread delayed free list
  MI_NEVER_DELAYED_FREE = 3  // sticky, only resets on page reclaim
} mi_delayed_t;

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47

// multi-threaded free (or free in huge block if compiled with MI_HUGE_PAGE_ABANDON)
static mi_decl_noinline void _mi_free_block_mt(mi_page_t* page, mi_block_t* block)
{
  ...
  // Try to put the block on either the page-local thread free list, or the heap delayed free list.
  mi_thread_free_t tfreex;
  bool use_delayed;
  mi_thread_free_t tfree = mi_atomic_load_relaxed(&page->xthread_free);
  do {
    use_delayed = (mi_tf_delayed(tfree) == MI_USE_DELAYED_FREE);
    if mi_unlikely(use_delayed) {
      // 如果是 MI_USE_DELAYED_FREE，将 block 添加到 heap 的 thread_delayed_free
      // 并设置 MI_DELAYED_FREEING，保证 heap 的有效性
      // unlikely: this only happens on the first concurrent free in a page that is in the full list
      tfreex = mi_tf_set_delayed(tfree,MI_DELAYED_FREEING);
    }
    else {
      // 非 MI_USE_DELAYED_FREE，包括了 MI_DELAYED_FREEING，MI_NO_DELAYED_FREE，
      // 直接添加到 page 的 xthread_free， 主要不会修改 delay-flag
      // usual: directly add to page thread_free list
      mi_block_set_next(page, block, mi_tf_block(tfree));
      tfreex = mi_tf_set_block(tfree,block);
    }
  } while (!mi_atomic_cas_weak_release(&page->xthread_free, &tfree, tfreex));

  if mi_unlikely(use_delayed) {
    // 添加到 heap 的 thread_delayed_free，MI_DELAYED_FREEING 能保证 heap 的有效性
    // racy read on `heap`, but ok because MI_DELAYED_FREEING is set (see `mi_heap_delete` and `mi_heap_collect_abandon`)
    mi_heap_t* const heap = (mi_heap_t*)(mi_atomic_load_acquire(&page->xheap)); //mi_page_heap(page);
    mi_assert_internal(heap != NULL);
    if (heap != NULL) {
      // add to the delayed free list of this heap. (do this atomically as the lock only protects heap memory validity)
      mi_block_t* dfree = mi_atomic_load_ptr_relaxed(mi_block_t, &heap->thread_delayed_free);
      do {
        mi_block_set_nextx(heap,block,dfree, heap->keys);
      } while (!mi_atomic_cas_ptr_weak_release(mi_block_t,&heap->thread_delayed_free, &dfree, block));
    }

    // and reset the MI_DELAYED_FREEING flag
    tfree = mi_atomic_load_relaxed(&page->xthread_free);
    do {
      tfreex = tfree;
      mi_assert_internal(mi_tf_delayed(tfree) == MI_DELAYED_FREEING);
      tfreex = mi_tf_set_delayed(tfree,MI_NO_DELAYED_FREE);
    } while (!mi_atomic_cas_weak_release(&page->xthread_free, &tfree, tfreex));
  }
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27

static inline void _mi_free_block(mi_page_t* page, bool local, mi_block_t* block)
{
  // and push it on the free list
  //const size_t bsize = mi_page_block_size(page);
  if mi_likely(local) {
    // owning thread can free a block directly
    if mi_unlikely(mi_check_is_double_free(page, block)) return;
    mi_check_padding(page, block);
    #if (MI_DEBUG!=0) && !MI_TRACK_ENABLED
    if (!mi_page_is_huge(page)) {   // huge page content may be already decommitted
      memset(block, MI_DEBUG_FREED, mi_page_block_size(page));
    }
    #endif
    mi_block_set_next(page, block, page->local_free);
    page->local_free = block;
    page->used--;
    if mi_unlikely(mi_page_all_free(page)) {
      _mi_page_retire(page);
    }
    else if mi_unlikely(mi_page_is_in_full(page)) {
      _mi_page_unfull(page);
    }
  }
  else {
    _mi_free_block_mt(page,block);
  }
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50

// Free the thread local default heap (called from `mi_thread_done`)
static bool _mi_heap_done(mi_heap_t* heap) {
  if (!mi_heap_is_initialized(heap)) return true;
  // 设置默认 heap 为 _mi_heap_empty（一个全局变量）
  // reset default heap
  _mi_heap_set_default_direct(_mi_is_main_thread() ? &_mi_heap_main : (mi_heap_t*)&_mi_heap_empty);
  // heap_backing 已经即为 thread 默认堆
  // switch to backing heap
  heap = heap->tld->heap_backing;
  if (!mi_heap_is_initialized(heap)) return false;

  // delete all non-backing heaps in this thread
  mi_heap_t* curr = heap->tld->heaps;
  while (curr != NULL) {
    mi_heap_t* next = curr->next; // save `next` as `curr` will be freed
    if (curr != heap) {
      mi_assert_internal(!mi_heap_is_backing(curr));
      // 会将正在使用的 page 转移到 heap_backing，并free heap 的 内存
      mi_heap_delete(curr);
    }
    curr = next;
  }
  mi_assert_internal(heap->tld->heaps == heap && heap->next == NULL);
  mi_assert_internal(mi_heap_is_backing(heap));

  // collect if not the main thread
  if (heap != &_mi_heap_main) {
    // 会遍历 heap_backing 中 abandoned 的 pages 并执行 page abandon
    _mi_heap_collect_abandon(heap);
  }

  // free if not the main thread
  if (heap != &_mi_heap_main) {
    // the following assertion does not always hold for huge segments as those are always treated
    // as abondened: one may allocate it in one thread, but deallocate in another in which case
    // the count can be too large or negative. todo: perhaps not count huge segments? see issue #363
    // mi_assert_internal(heap->tld->segments.count == 0 || heap->thread_id != _mi_thread_id());
    mi_thread_data_free((mi_thread_data_t*)heap);
  }
  else {
    mi_thread_data_collect(); // free cached thread metadata
    #if 0
    // never free the main thread even in debug mode; if a dll is linked statically with mimalloc,
    // there may still be delete/free calls after the mi_fls_done is called. Issue #207
    _mi_heap_destroy_pages(heap);
    mi_assert_internal(heap->tld->heap_backing == &_mi_heap_main);
    #endif
  }
  return false;
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40

static void mi_segment_abandon(mi_segment_t* segment, mi_segments_tld_t* tld) {
  // 所有 page 都是 abandoned
  mi_assert_internal(segment->used == segment->abandoned);
  // 有效的 page 个数不为 0，page 被 free 时，used 会减一
  mi_assert_internal(segment->used > 0);
  // 之前不是 abandoned
  mi_assert_internal(mi_atomic_load_ptr_relaxed(mi_segment_t, &segment->abandoned_next) == NULL);
  mi_assert_internal(segment->abandoned_visits == 0);
  mi_assert_expensive(mi_segment_is_valid(segment,tld));

  // remove the free pages from the free page queues
  mi_slice_t* slice = &segment->slices[0];
  // 最后一个有效 slice
  const mi_slice_t* end = mi_segment_slices_end(segment);
  while (slice < end) {
    // 都是 page
    mi_assert_internal(slice->slice_count > 0);
    mi_assert_internal(slice->slice_offset == 0);
    if (slice->xblock_size == 0) { // a free page
      // 从 tld 的 span 队列移除
      mi_segment_span_remove_from_queue(slice,tld);
      slice->xblock_size = 0; // but keep it free
    }
    slice = slice + slice->slice_count;
  }

  // perform delayed decommits
  // 不一定所有 delayed block 都是 decommited
  mi_segment_delayed_decommit(segment, mi_option_is_enabled(mi_option_abandoned_page_decommit) /* force? */, tld->stats);

  // all pages in the segment are abandoned; add it to the abandoned list
  _mi_stat_increase(&tld->stats->segments_abandoned, 1);
  mi_segments_track_size(-((long)mi_segment_size(segment)), tld);
  // 不再和任何线程关联
  segment->thread_id = 0;
  mi_atomic_store_ptr_release(mi_segment_t, &segment->abandoned_next, NULL);
  segment->abandoned_visits = 1;   // from 0 to 1 to signify it is abandoned
  // 加入全局的 abandoned 链表
  mi_abandoned_push(segment);
}

1
2
3
4
5

typedef enum mi_collect_e {
  MI_NORMAL, // 仅 free
  MI_FORCE, //
  MI_ABANDON
} mi_collect_t;

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55

// 将 xthread_free 转移到 local_free， 将 local_free 转移到 free-list
// 如果 force 为 false，只有在 free-list 为空时才将 local_free 转移到 free-list
void _mi_page_free_collect(mi_page_t* page, bool force) {
  mi_assert_internal(page!=NULL);

  // collect the thread free list
  if (force || mi_page_thread_free(page) != NULL) {  // quick test to avoid an atomic operation
    // 将 xthread_free 转移到 local_free
    _mi_page_thread_free_collect(page);
  }

  // and the local free list
  if (page->local_free != NULL) {
    if mi_likely(page->free == NULL) {
      // usual case
      page->free = page->local_free;
      page->local_free = NULL;
      page->is_zero = false;
    }
    else if (force) {
      // append -- only on shutdown (force) as this is a linear operation
      mi_block_t* tail = page->local_free;
      mi_block_t* next;
      while ((next = mi_block_next(page, tail)) != NULL) {
        tail = next;
      }
      mi_block_set_next(page, tail, page->free);
      page->free = page->local_free;
      page->local_free = NULL;
      page->is_zero = false;
    }
  }

  mi_assert_internal(!force || page->local_free == NULL);
}

// 先进行 page 的 collect，如果 page 为空，free page，如果 page 不为空，且 collect 等于 abandon 时，
// 会进行 page 的 abandon
static bool mi_heap_page_collect(mi_heap_t* heap, mi_page_queue_t* pq, mi_page_t* page, void* arg_collect, void* arg2 ) {
  MI_UNUSED(arg2);
  MI_UNUSED(heap);
  mi_assert_internal(mi_heap_page_is_valid(heap, pq, page, NULL, NULL));
  mi_collect_t collect = *((mi_collect_t*)arg_collect);
  _mi_page_free_collect(page, collect >= MI_FORCE);
  if (mi_page_all_free(page)) {
    // no more used blocks, free the page.
    // note: this will free retired pages as well.
    _mi_page_free(page, pq, collect >= MI_FORCE);
  }
  else if (collect == MI_ABANDON) {
    // still used blocks but the thread is done; abandon the page
    _mi_page_abandon(page, pq);
  }
  return true; // don't break
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10

typedef mi_page_t  mi_slice_t;

// A "span" is is an available range of slices. The span queues keep
// track of slice spans of at most the given `slice_count` (but more than the previous size class).
typedef struct mi_span_queue_s {
  mi_slice_t* first;
  mi_slice_t* last;
  // span 最多包含的 slice 个数
  size_t      slice_count;
} mi_span_queue_t;

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

// 最小的 commit 大小，用于 commit
#define MI_MINIMAL_COMMIT_SIZE      (16*MI_SEGMENT_SLICE_SIZE)           // 1MiB
// commit 的最小单位，必须是 slice 的整数倍，
// 值越大，commit 和 decommit 的效率越高，但精度越小
#define MI_COMMIT_SIZE              (MI_SEGMENT_SLICE_SIZE)              // 64KiB
// commit area bit 位个数
#define MI_COMMIT_MASK_BITS         (MI_SEGMENT_SIZE / MI_COMMIT_SIZE)
// 当前系统，一个 size_t 的比特个数
#define MI_COMMIT_MASK_FIELD_BITS    MI_SIZE_BITS
// 需要 size_t 类型的 mask 数组的大小
#define MI_COMMIT_MASK_FIELD_COUNT  (MI_COMMIT_MASK_BITS / MI_COMMIT_MASK_FIELD_BITS)

typedef struct mi_commit_mask_s {
  size_t mask[MI_COMMIT_MASK_FIELD_COUNT];
} mi_commit_mask_t;

typedef struct mi_segment_s {
  ...
  // 是否允许 decommit, mi_option_decommit_delay option 可以设置是否允许 delay decommit
  bool              allow_decommit;
  // delay decommit 的过期时间
  mi_msecs_t        decommit_expire;
  // 需要 delay decommit 的 mask
  mi_commit_mask_t  decommit_mask;
  // commit 状态 bit mask
  mi_commit_mask_t  commit_mask;
  ...
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44

static bool mi_segment_commitx(mi_segment_t* segment, bool commit, uint8_t* p, size_t size, mi_stats_t* stats) {
  // 确保需要delay decommit 的之前都是 commited 状态
  mi_assert_internal(mi_commit_mask_all_set(&segment->commit_mask, &segment->decommit_mask));

  // commit liberal, but decommit conservative
  uint8_t* start = NULL;
  size_t   full_size = 0;
  mi_commit_mask_t mask;
  // 计算得到需要更新的 mask
  mi_segment_commit_mask(segment, !commit/*conservative*/, p, size, &start, &full_size, &mask);
  if (mi_commit_mask_is_empty(&mask) || full_size==0) return true;

  // 判断是 commit && 需要更新 mask
  if (commit && !mi_commit_mask_all_set(&segment->commit_mask, &mask)) {
    bool is_zero = false;
    mi_commit_mask_t cmask;
    mi_commit_mask_create_intersect(&segment->commit_mask, &mask, &cmask);
    _mi_stat_decrease(&_mi_stats_main.committed, _mi_commit_mask_committed_size(&cmask, MI_SEGMENT_SIZE)); // adjust for overlap
    if (!_mi_os_commit(start,full_size,&is_zero,stats)) return false;
    mi_commit_mask_set(&segment->commit_mask, &mask);
  }
  // 判断是 decommit && 有 bit 还是 commited 状态
  else if (!commit && mi_commit_mask_any_set(&segment->commit_mask, &mask)) {
    mi_assert_internal((void*)start != (void*)segment);
    //mi_assert_internal(mi_commit_mask_all_set(&segment->commit_mask, &mask));

    mi_commit_mask_t cmask;
    mi_commit_mask_create_intersect(&segment->commit_mask, &mask, &cmask);
    _mi_stat_increase(&_mi_stats_main.committed, full_size - _mi_commit_mask_committed_size(&cmask, MI_SEGMENT_SIZE)); // adjust for overlap
    if (segment->allow_decommit) {
      _mi_os_decommit(start, full_size, stats); // ok if this fails
    }
    // 清除 commit 状态
    mi_commit_mask_clear(&segment->commit_mask, &mask);
  }
  // decommit_mask 中，属于 mask 的部分已经得标记为 decommit 的了，但剩下部分还需要 delay decommit
  // increase expiration of reusing part of the delayed decommit
  if (commit && mi_commit_mask_any_set(&segment->decommit_mask, &mask)) {
    segment->decommit_expire = _mi_clock_now() + mi_option_get(mi_option_decommit_delay);
  }
  // always undo delayed decommits
  mi_commit_mask_clear(&segment->decommit_mask, &mask);
  return true;
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48

// 将 addr 安排 page 对齐后，得到新的地址和大小
// 如果是 conservative, 只得到在 (addr, addr+size) 内部的 pages，
// 如果非 conservative，将得到（addr， addr+size）横跨的所有 pages
static void* mi_os_page_align_areax(bool conservative, void* addr, size_t size, size_t* newsize) {
  ...
  // page align conservatively within the range
  void* start = (conservative ? mi_align_up_ptr(addr, _mi_os_page_size())
    : mi_align_down_ptr(addr, _mi_os_page_size()));
  void* end = (conservative ? mi_align_down_ptr((uint8_t*)addr + size, _mi_os_page_size())
    : mi_align_up_ptr((uint8_t*)addr + size, _mi_os_page_size()));
  ptrdiff_t diff = (uint8_t*)end - (uint8_t*)start;
  if (diff <= 0) return NULL;

  mi_assert_internal((conservative && (size_t)diff <= size) || (!conservative && (size_t)diff >= size));
  if (newsize != NULL) *newsize = (size_t)diff;
  return start;
}

// Commit/Decommit memory.
// Usually commit is aligned liberal, while decommit is aligned conservative.
// (but not for the reset version where we want commit to be conservative as well)
static bool mi_os_commitx(void* addr, size_t size, bool commit, bool conservative, bool* is_zero, mi_stats_t* stats) {
    ...
    size_t csize;
    // 得到 page 对齐后的地址和大小
    void* start = mi_os_page_align_areax(conservative, addr, size, &csize);
    ...
    // commit 将内存标记为可读写
    // 由于内存已经在 segment 中分配了，所以 commit 只是改变访问权限，真正的内存分配都是预先分配好的
    if (commit) {
      // commit: ensure we can access the area
      err = mprotect(start, csize, (PROT_READ | PROT_WRITE));
      if (err != 0) { err = errno; }
    }
    else {
      #if defined(MADV_DONTNEED) && MI_DEBUG == 0 && MI_SECURE == 0
      // 告诉操作系统，page 可以被回收了，同时减少进程的 memory 占用
      // decommit: use MADV_DONTNEED as it decreases rss immediately (unlike MADV_FREE)
      // (on the other hand, MADV_FREE would be good enough.. it is just not reflected in the stats :-( )
      err = madvise(start, csize, MADV_DONTNEED);
      #else
      // PROT_NONE 可以用来做 memory guard，用来检测 overflow，或者其他非法访问
      // decommit: just disable access (also used in debug and secure mode to trap on illegal access)
      err = mprotect(start, csize, PROT_NONE);
      if (err != 0) { err = errno; }
      #endif
    }
}

1
2
3
4

// GCC,Clang: use the constructor attribute
static void __attribute__((constructor)) _mi_process_init(void) {
  mi_process_load();
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12

// 线程终止时，如果 key 关联的值不为 NULL, destructor 函数被执行
int pthread_key_create(pthread_key_t *key, void (*destructor)(void *));

// fn mi_process_setup_auto_thread_done
// _mi_heap_default_key 为全局定义的变量，对所有线程可见
pthread_key_create(&_mi_heap_default_key, &mi_pthread_done);

// fn _mi_heap_set_default_direct
if (_mi_heap_default_key != (pthread_key_t)(-1)) {  // can happen during recursive invocation on freeBSD
  // heap 为线程的 heap
  pthread_setspecific(_mi_heap_default_key, heap);
}

1
2

// fn mi_process_load
atexit(&mi_process_done);

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27

// 线程局部变量，一个指针大小，以空堆初始化，确保指针不为空
mi_decl_thread mi_heap_t* _mi_heap_default = (mi_heap_t*)&_mi_heap_empty;

// 线程创建时动态分配
typedef struct mi_thread_data_s {
  // 线程默认堆，通过 heap 能引用到 tld
  mi_heap_t  heap;  // must come first due to cast in `_mi_heap_done`
  // 线程所有的 local data
  mi_tld_t   tld;
} mi_thread_data_t;

#define TD_CACHE_SIZE (8)
// 小型的 mi_thread_data_t 缓存，默认 8 个
static _Atomic(mi_thread_data_t*) td_cache[TD_CACHE_SIZE];

// 用于分配 mi_thread_data_t，先从 cache 中寻找，没有从系统分配
// mi_thread_data_alloc 的实现是无锁的
static mi_thread_data_t* mi_thread_data_alloc(void)

// fn _mi_heap_set_default_direct
// 初始化完成后，_mi_heap_default 指向分配的内存
_mi_heap_default = heap;

// 主线程 thread local data, 全局静态变量
static mi_tld_t tld_main
// 主线程默认堆，全局变量
mi_heap_t _mi_heap_main

 1
 2
 3
 4
 5
 6
 7
 8
 9
10

// fn mi_process_done
// cmakelist.txt 中的选项
#ifndef MI_SKIP_COLLECT_ON_EXIT
  #if (MI_DEBUG != 0) || !defined(MI_SHARED_LIB)
  // free all memory if possible on process exit. This is not needed for a stand-alone process
  // but should be done if mimalloc is statically linked into another shared library which
  // is repeatedly loaded/unloaded, see issue #281.
  mi_collect(true /* force */ );
  #endif
#endif
